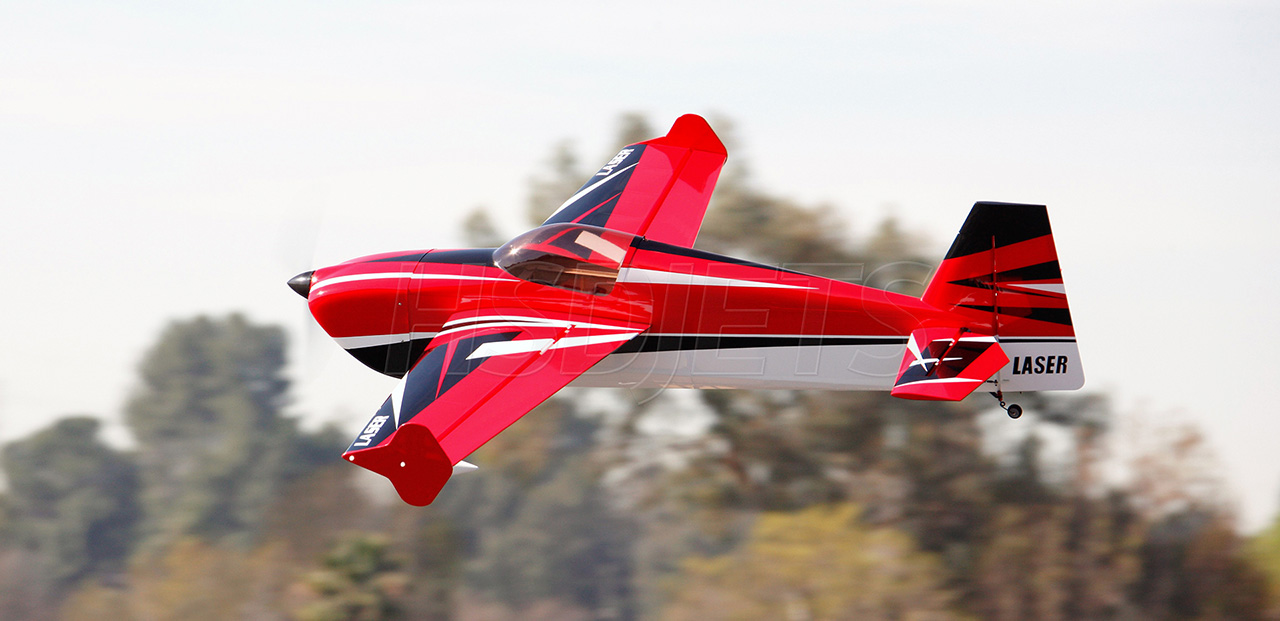

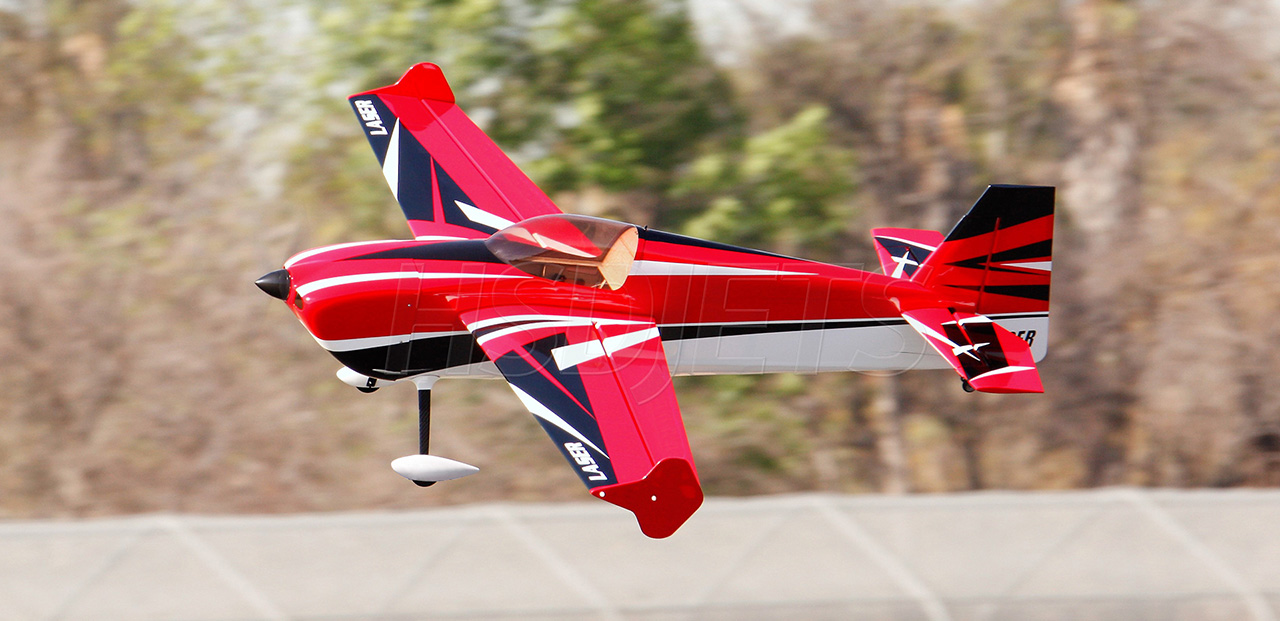

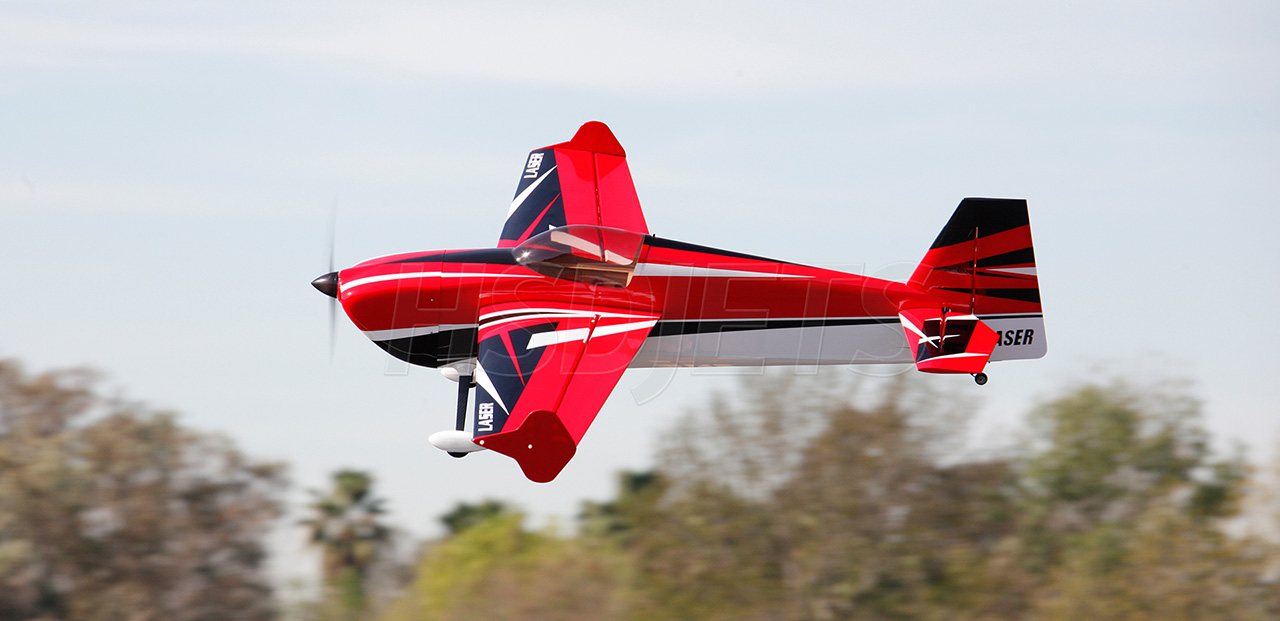

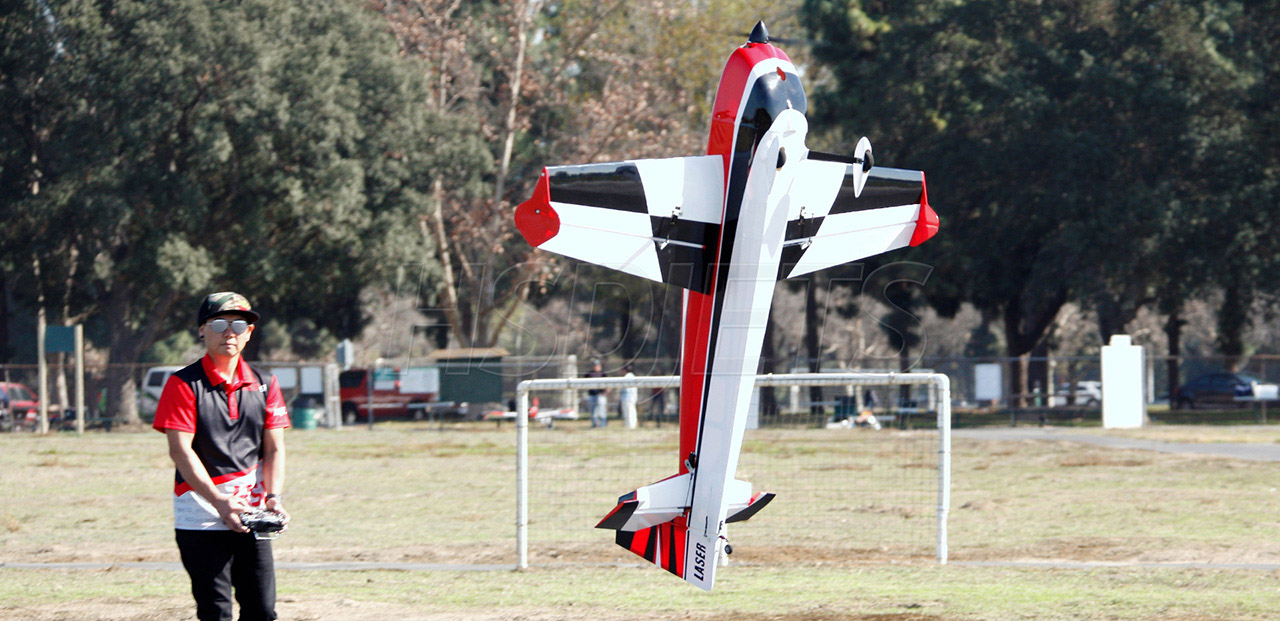

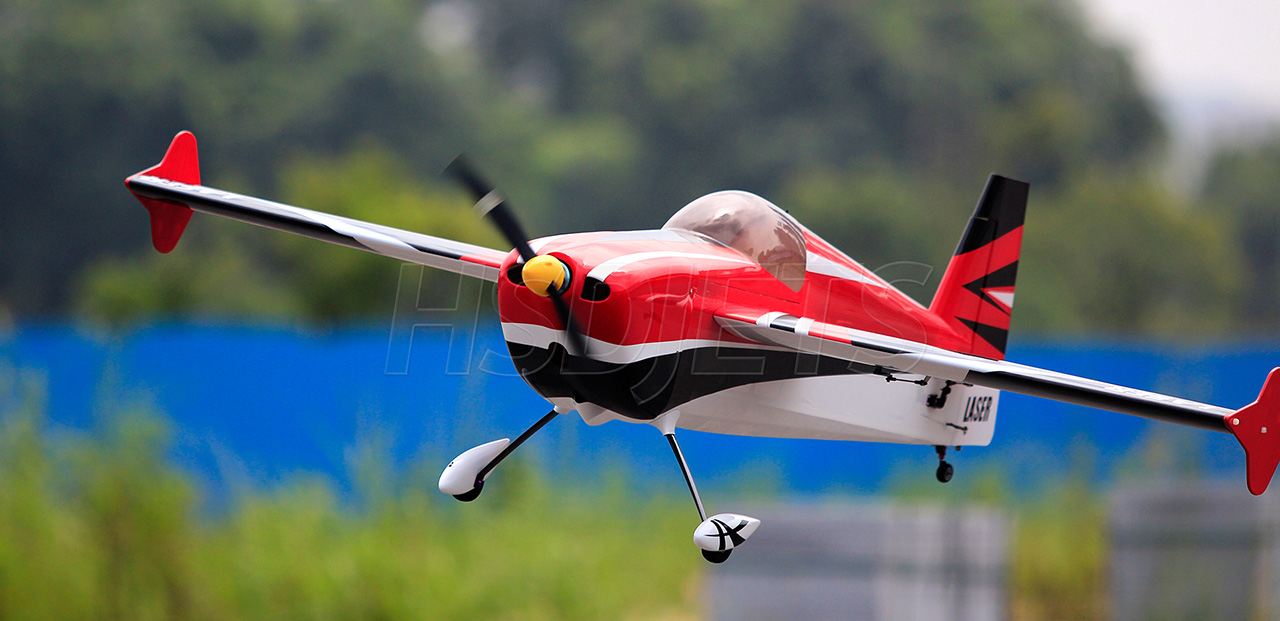

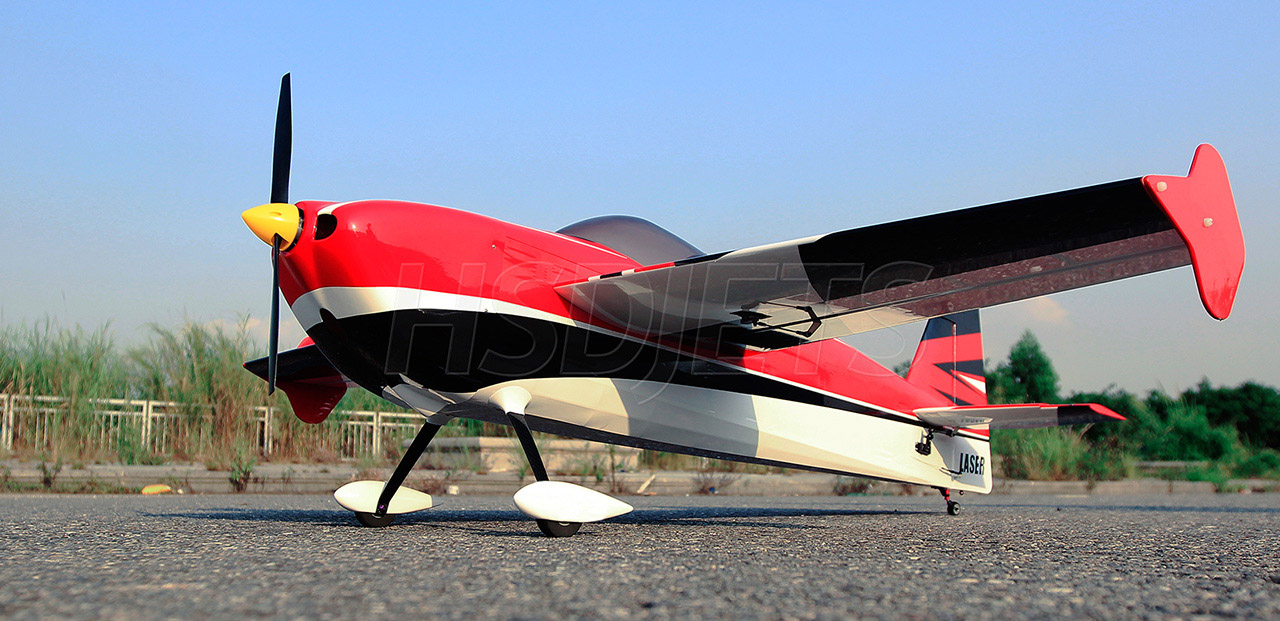

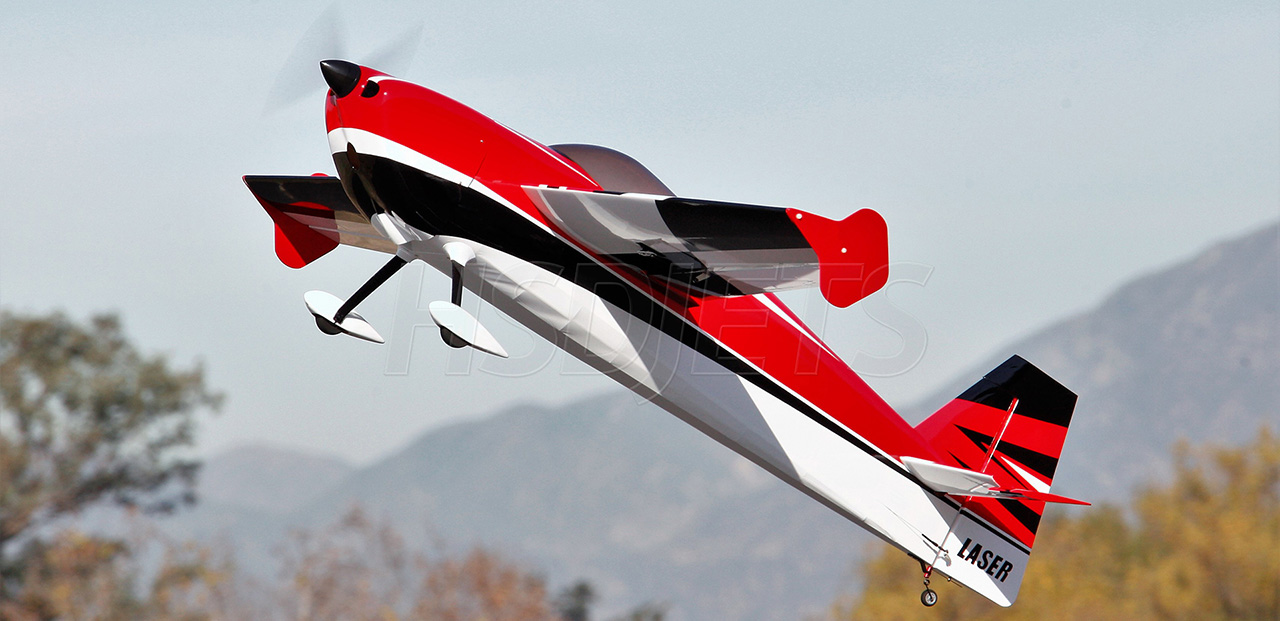

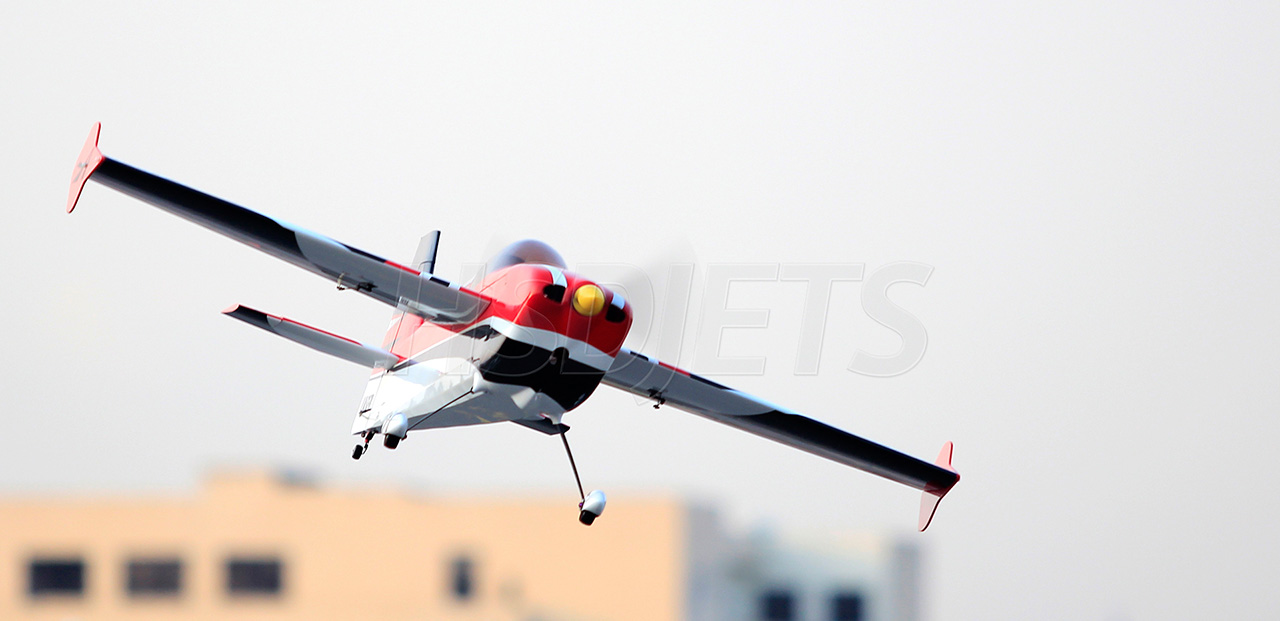

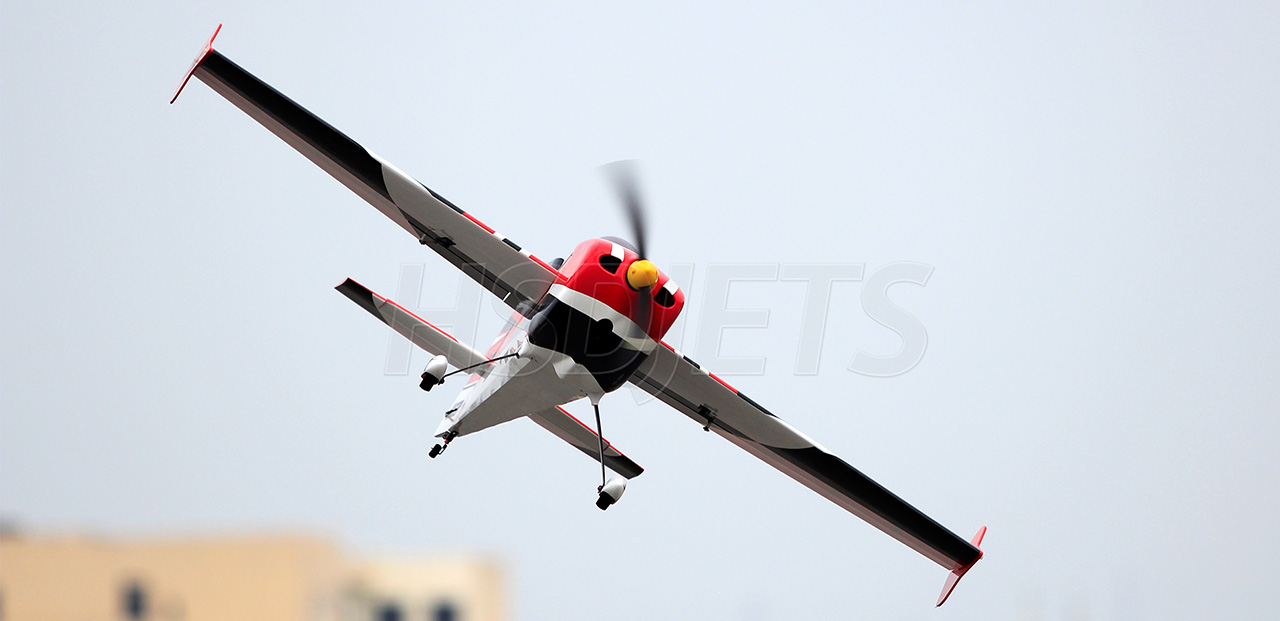

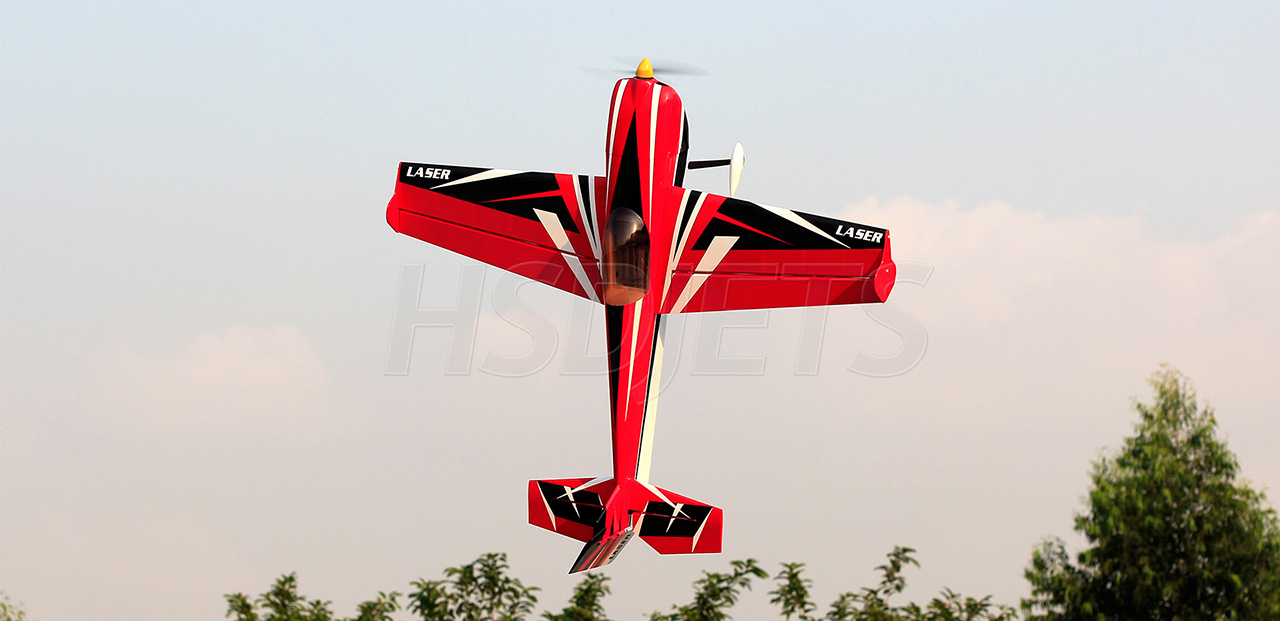

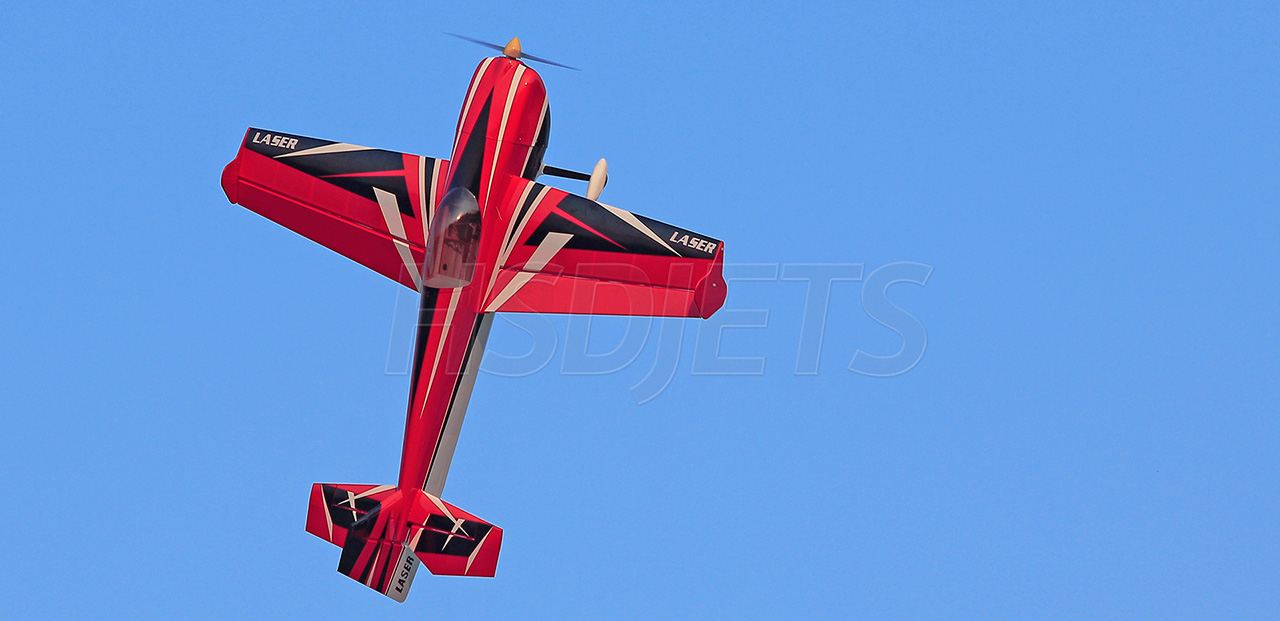

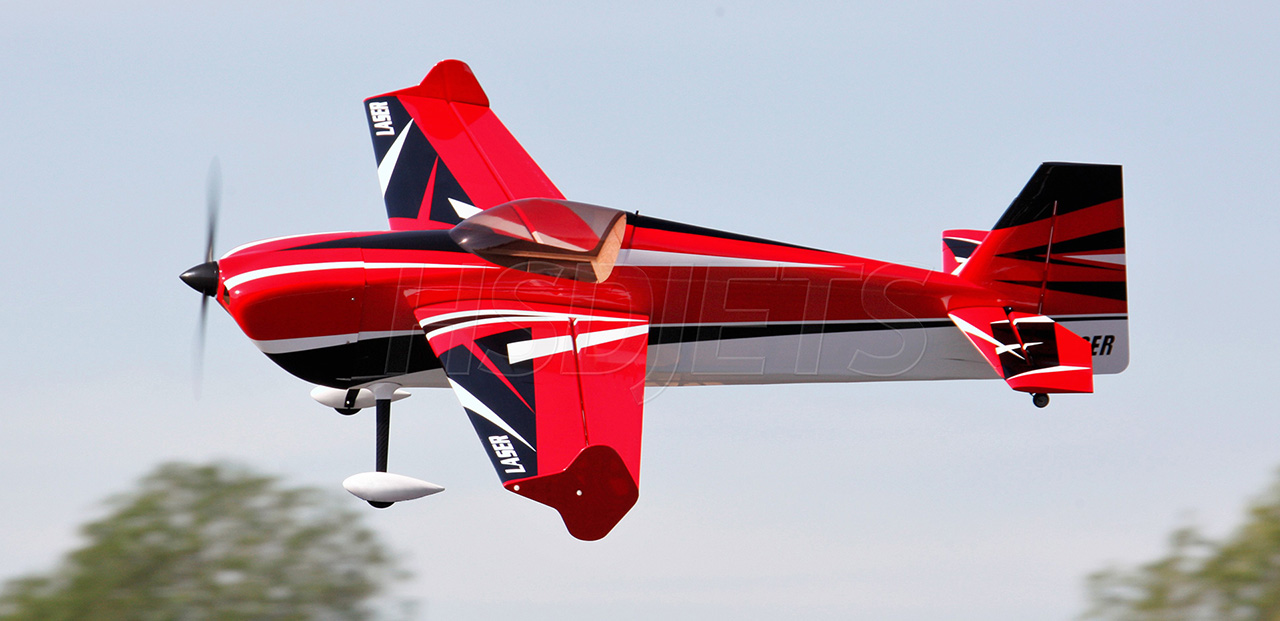

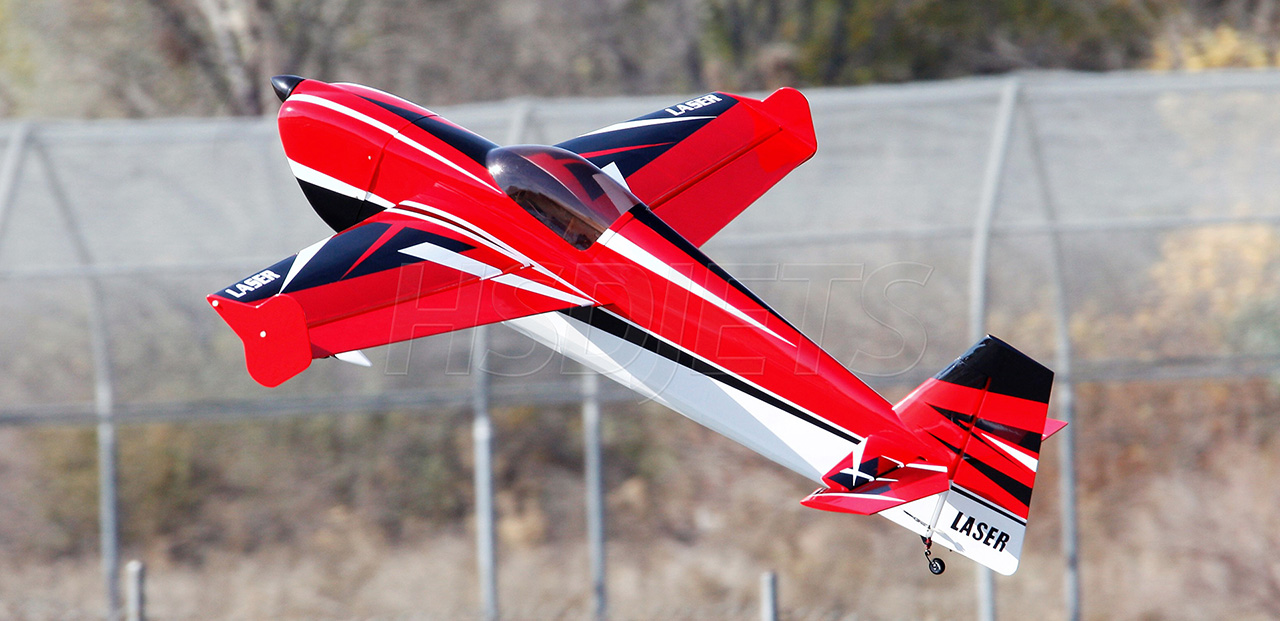

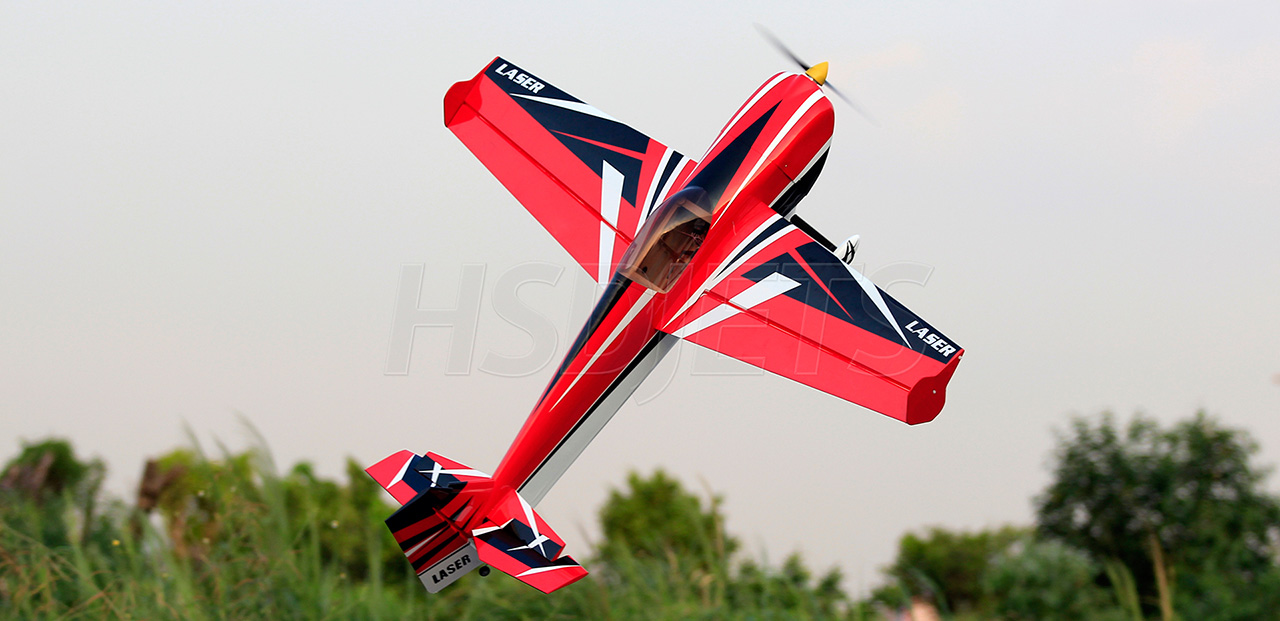

HSDJETS 60inch Laser 260 C Red

Current location:Home > Electric Airplanes


SPECIFICATIONS

Wingspan1524mm (60in)
Length1460mm (57.5in)
Weight1kg / 2.2 lb (w/o battery), 2.3~2.6kg / 5.1~5.7 lb (w/ battery)
Wing area39.2 dm2, 607.6 in2
Wing load58.7~66.3 g/dm2 , 3.8~4.3 g/in2
Power System5050-500KV brushless outrunner motor
Electronic Speed Control80100A (AS150 type connector) with 5A UBEC
Propeller15×5.5 2-Blade

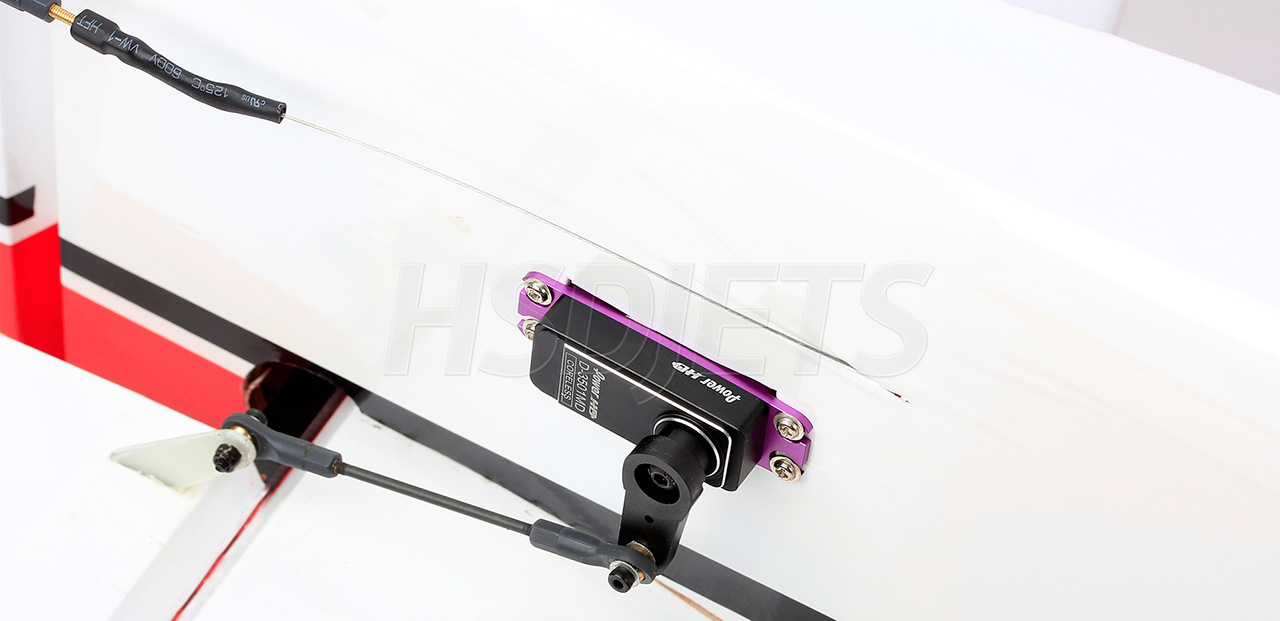

Servos

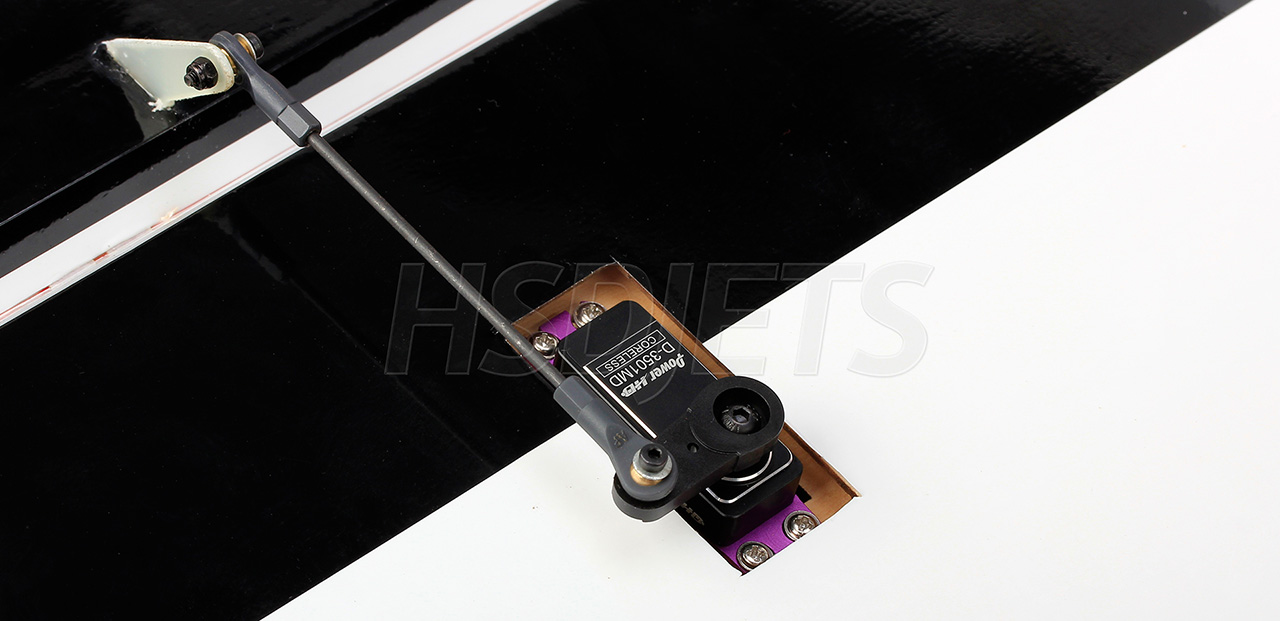

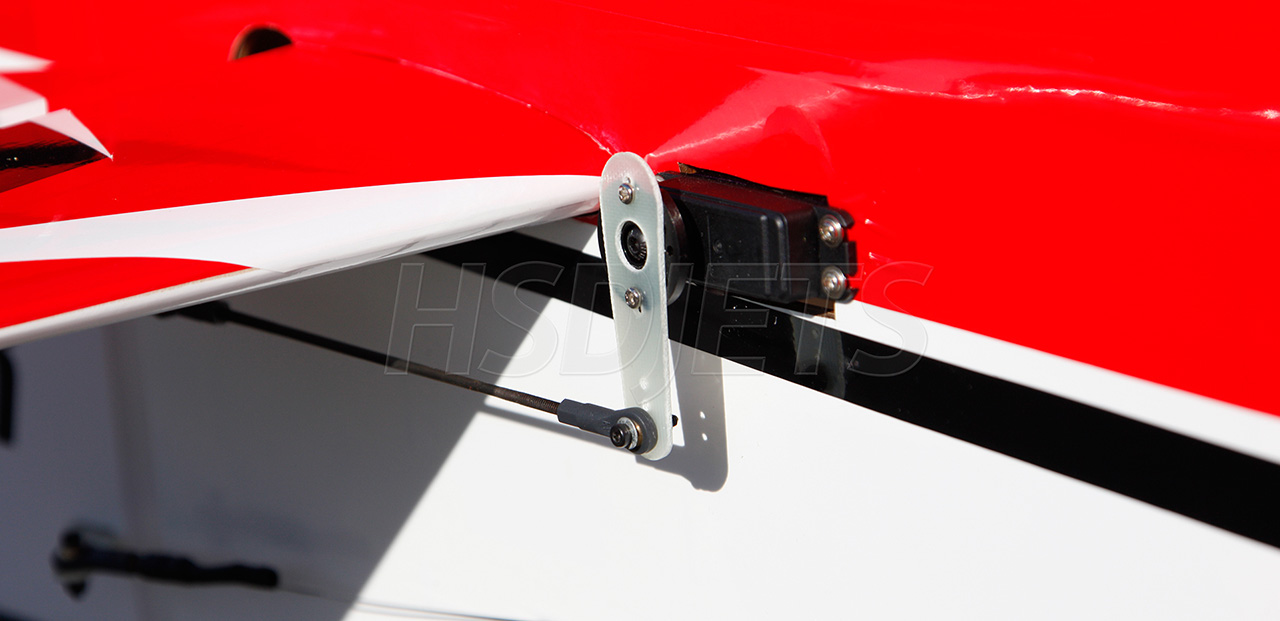

25g×2 metal gear with 350mm lead (left & right ailerons)
25g×2 metal gear with 190mm lead(elevator & rudder)

CG (Center of Gravity)111mm from the leading edge of the Main Wing

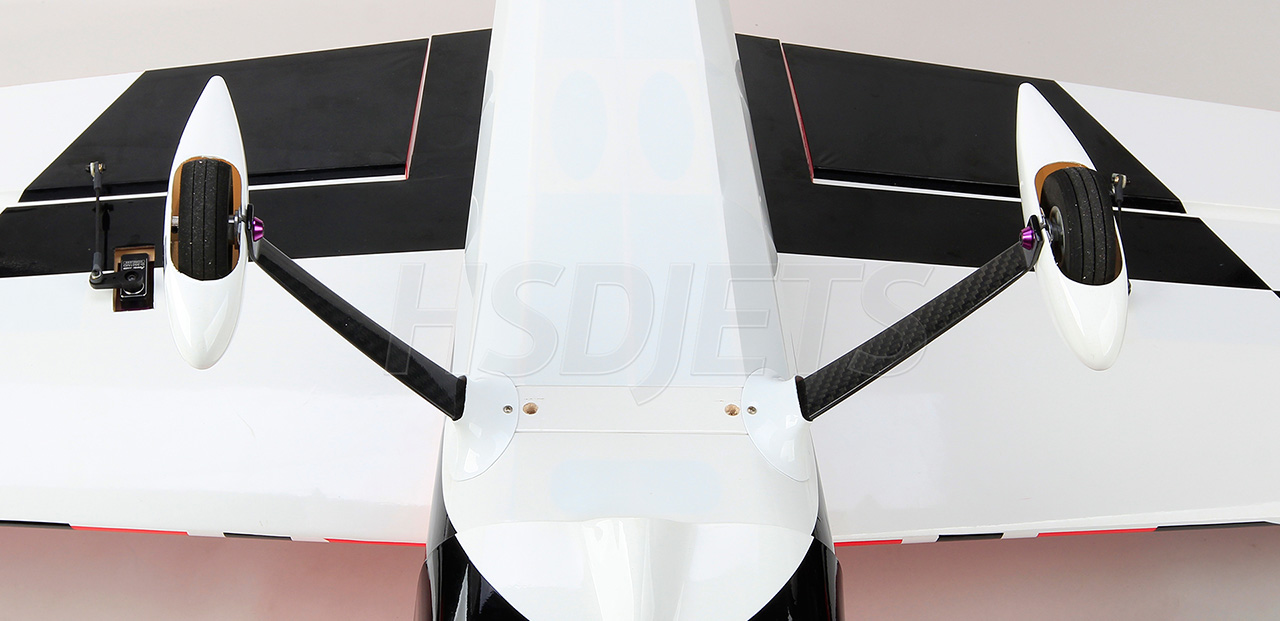

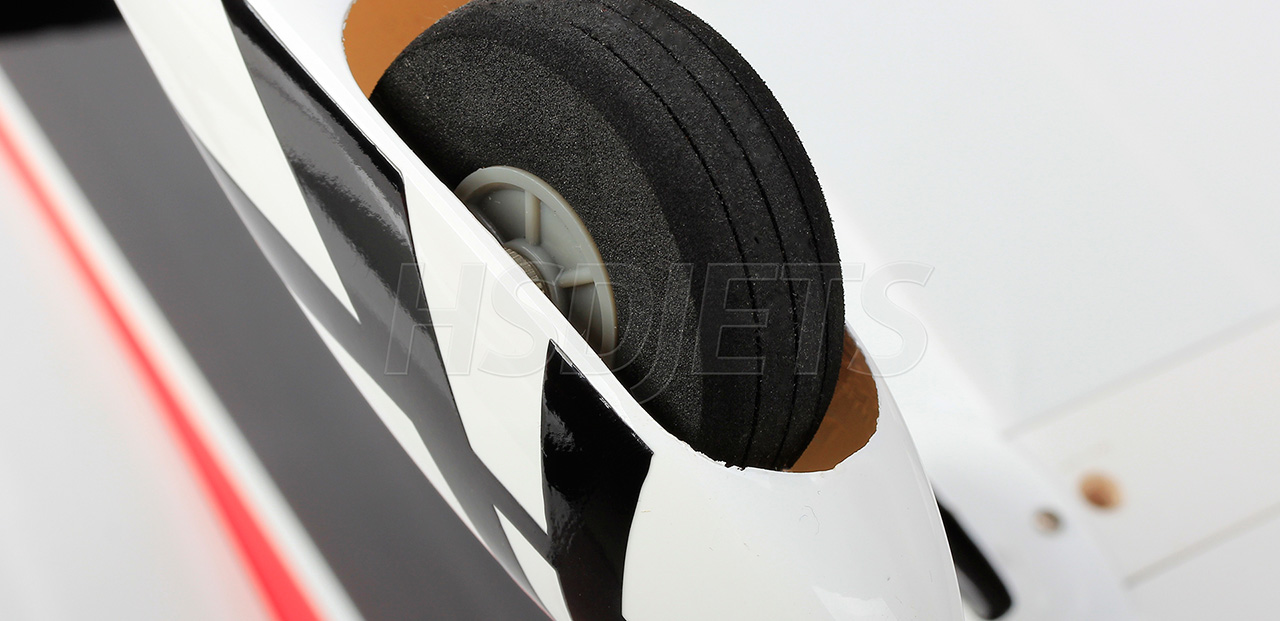

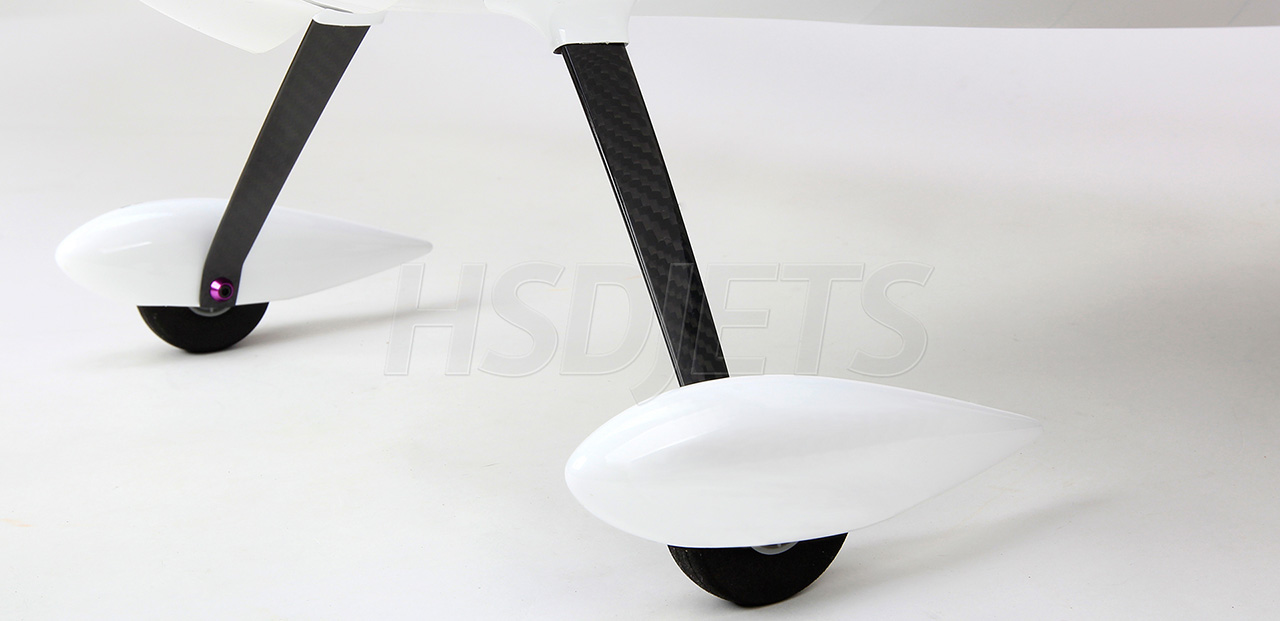

Landing GearsCarbon fiber fixed landing gear
Radio System4 channel (required & not included)
Battery6S 22.2V 3300mAh 40C to 4500mAh LiPo with AS150 type connector (required & not included)
Battery Charger6S LiPo battery charger (required & not included)
AileronsYes
ElevatorYes
RudderYes
FlapsNo
LightsNo
Hinge TypeNylon hinges
MaterialWood, Fiberglass, Carbon Fiber, High Quality Covering
Skill LevelIntermediate-Advanced
Build Time1 hours



Features:


REQUIRES:
